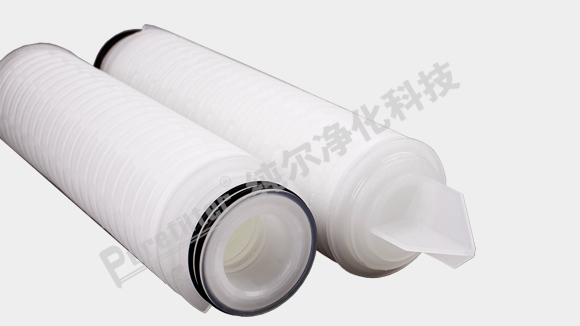

Purefilter Hydrophobic PTFE Pleated Series Filter Cartridges
Features
Strong Hydrophobic Nature for Membrane,Ensure Absolutely Sterilization Under the Conditions of Wet or Dry,100% Filtration Phage in the Gas.
Biologically Inert,Chemically Resistant PTFE Media
Uniform Pore Size Throughout Membrane for High Contaminant Retention Capacity and Flow Rates
High Purity Polypropylene Hardware Construction-Inert to Many Process Fluids Ensuring Wide Chemical Compatibility
100% Rinsed with DI Water and Integrity Tested
PManufactured,Rinsed,Tested and Packaged in a Class 10000 Clean Room Environment
Specifications
Materials of Construction:
Filter Media: Expanded Polytetrafluoro-ethylene(ePTFE)Membrane
Hardware/Core: Polypropylene
Surpport Layers: Polypropylene
End Cap: Polypropylene
Gaskets/O-Rings: EPDM,Viton,Silicone,Buna-N,Teflon Encapsulated Viton
Dimensions:
Outside Diameter: 2.67"(68mm)
lengths: 9.75" to 40"(248mm to 1016mm)
*Special Specifications Could Be Made to Order
Performance
Retention Ratings: 0.01、0.02μm Absolute
Maximum Differential Pressure: 80 psid(5.5 bar)@ 68℉(20℃)
20 psid(1.4 bar)@203℉(95℃)
Recommended Change Out Differential Pressure: 35 psid(2.4bar)
Applications
Filtration for Sterile Air and Breathing Air
Fermenter、Storage Tank、Batching Tank etc.
Final Filtration For Electronic Industry、High Purity Air
Degerming Filtration For Compressed Air
Degerming Filtration For Organic Solvent
|
Product Name |
Retention Rating |
Cartridge Length |
End Configurations |
Materials of O-rings/Gaskets |
|
PTA |
0.01、0.02μm Absolute
|
9.75”、10”、20”、30”、40” |
DOE=No Symbol 3=SOE with 222 O-rings, Flat Closed End 8=SOE with 222 O-rings, Fin End 7=SOE with 226 O-rings, Fin End |
N=Buna-N E=EPDM V=Viton S=Silicone F=Teflon |
