product

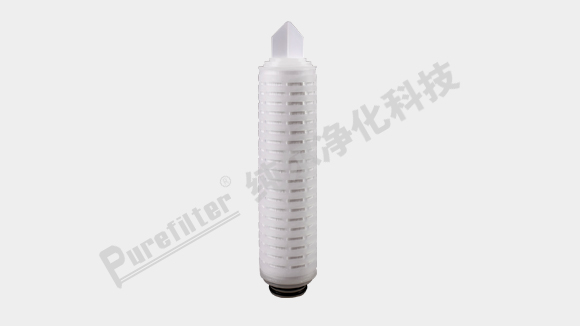

Purefilter Hydrophilic Fiber Glass Pleated Series Filter Cartridges
Features
Consisting of Borosilicate Fiber Glass and Imported Nonwoven for Surpporting Layers
Graded Pore Structure Increases Dirt Holding Capacity
Remarkable Chemical Compatibility,Suitable for Strong Acid 、 Strong Alkalies and Organic Solvent
Various Gaskets/O-rings Materials-Compatible with Many Fluids
Manufactured,Rinsed,Tested and Packaged in a Class 10000 Clean Room Environment
Specifications
Materials of Construction:
Filter Media: Fiber Glass
Surpport Layers: Polypropylene
Hardware/Center Core: Polypropylene
End Caps: Polypropylene
O-Rings: EPDM,Viton,Silicone,Buna-N,Teflon Encapsulated Viton
Dimensions:
Outside Diameter: 2.67"(68mm)
lengths: 9.75" to 40"(248mm to 1016mm)
*Special Specifications Could Be Made to Order
Performance
Retention Ratings: 0.45,1,3,5,10,20,50μm
Maximum Differential Pressure: 75 psid(5.1 bar)@ 68℉(20℃)
40 psid(2.8 bar)@150℉(65℃)
Recommended Change Out Differential Pressure: 35 psid(2.4bar)
Applications
Food and Beverage Industry: Wine,Mineral Water,Potable Water etc.
Medicine Industry:Pre-Filtration for Various Antibiotic etc.
Oil Industry:Oil-field Flooding Filtration
Chemical Industry:Various Organic Solvent 、Acid Liquid and Alkalies Liquid
Filtration for Toiletry
DI Water System
Ordering Information
|
Product Name |
Retention Rating |
Cartridge Length |
End Configurations |
Materials of O-rings/Gaskets |
|
PGF |
0.45、1、3、5、10、20、30、50μm |
5”、9.75”、10”、20”、 30”、40” |
DOE=No Symbol 3=SOE with 222 O-rings, Flat Closed End 8=SOE with 222 O-rings, Fin End 7=SOE with 226 O-rings, Fin End |
N=Buna-N E=EPDM V=Viton S=Silicone F=Teflon |
