product

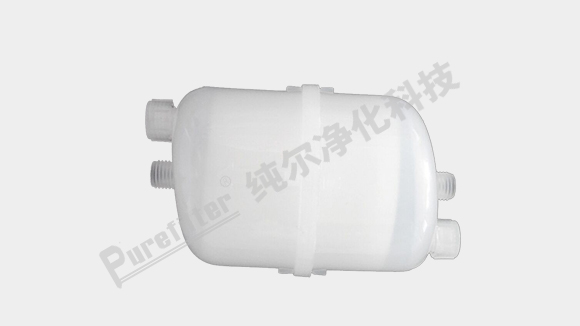

Capsule Filter
Product Features
l High Purity Polypropylene Capsules Provide Cost Effective Filtration Of Aqueous Liquids And Chemicals
l Melt Brown Polypropylene, Polyethersulfone (PES) Membrane and Polytetrafluoro-ethylene(e-PTFE) Membrane Media Options Available.
l Low Hold Up Volume Minimizes Loss Of Valuable Process Fluids
l Vent And Drain Location Optimized For Quick Change-Out
l Filters Are Manufactured, Flushed, Tested And Packaged In A Class 1,000 Clean Room Environment
Product Specifications
Materials of Construction
l Filter Media: Melt Blown Polypropylene, PES, PTFE
l Hardware: Polypropylene
l Sealing: Thermal Bond
l Support Material: Polypropylene
Dimensions
Inlet/Outlet: 1/4”NPT Male
Filter Surface: 850 c㎡
Other Specifications can consult Factory
Performance Specifications
Retention Rating:
PP:0.2、0.25、0.45、0.8、2、5、10、20、40μm
PES:0.04、0.1、0.2、0.45、1.2μm Absolute
PTFE:0.1、0.2μm Absolute
Maximum Operating Pressure:
60psig(4.1bar)@77οF(25℃)
Applications
? Filtration of ink and dye and developer
in chemical industry
? Filtration of liquid and tissue culture fluids in pharmaceutical industry
? Photoresist, liquid crystal and other filters in optoelectronics industry.
